Double arms street light pole
Application
The shape design of this outdoor street light pole use of sleek metal structures and sharp lines, combine usefully with modern style environments,it’s an ideal choice to lighten entrances, walkways,street, plaza，square and commercial areas
Anchor Bolts
Fabricated from galvanized steel Q235. Bolts are provided with four foundation bolts which have an “L” bend on lower end and one flat washers.The top of bolts have an square locating plate.
Finish
The standard finish for the street light pole includes satin brush clear anodized and powder coated. Additional finish options are available according to customers’ request. Please consult suppliers for special finishing .
Advantages
• The density of aluminum is 2.7g/cm3, it is 1/3 of the steel, so the aluminum is much lighter than steel.
• Easily machining(Drill, Cut, Mill Punch, Bend, Weld, etc).
• Stable Chemical performance, recycle, aluminum is a green metal which is friendly to the environment.
• Excellent corrosion resistance.
• Excellent performance on surface finishing.
• The melting temperature of aluminum is lower than steel and low cost for recycling to all of the world’s energy-saving emission reduction.
Main Features of street light pole
|
Double Arms street light pole
|
|
|
Type
|
Street Lamp pole, lamp post, Lamp column, Street Light Pole (for LED & Solar street light)
|
|
Shape
|
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
|
|
Material
|
Q235B/A36,minimum yield strength>=235n/mm2
|
|
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
|
|
|
Torlance of dimenstion
|
±0.02
|
|
Design Load in Kg
|
300~ 1000 Kg appliced to 50cm from the to pole
|
|
Surface treatment
|
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
|
|
Standard
|
Octagonal tapered column Conforms to Standard: Pole design : BS EN 40
|
|
Material : BS EN 10025 S275 / JIS G3101 SS400
|
|
|
Welding : BS 5135
|
|
|
Galvanizing : BS 729 / ISO 1461 ASTM A 123
|
|
|
Length of per section
|
Within 14m once forming without slip joint.
|
|
Suit for
|
Highway，Roadway ，Residential subdivisions ，Commercial development
|
|
Option
|
Height from 5m to 8m Flange mounted or planted type
|
|
Variable arm length from 0.125m to 3.0m with single or double arm type
|
|
|
Variable spigot size from 35mm to 60mm.
|
|
|
Production Process
|
Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling
→Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
|
Packages
|
Our poles as normal cover by bubble pack/blanket or straw bale at the top and bottom ,anyway also can following by client required
|
|
Warranty
|
At least 20 years.
|

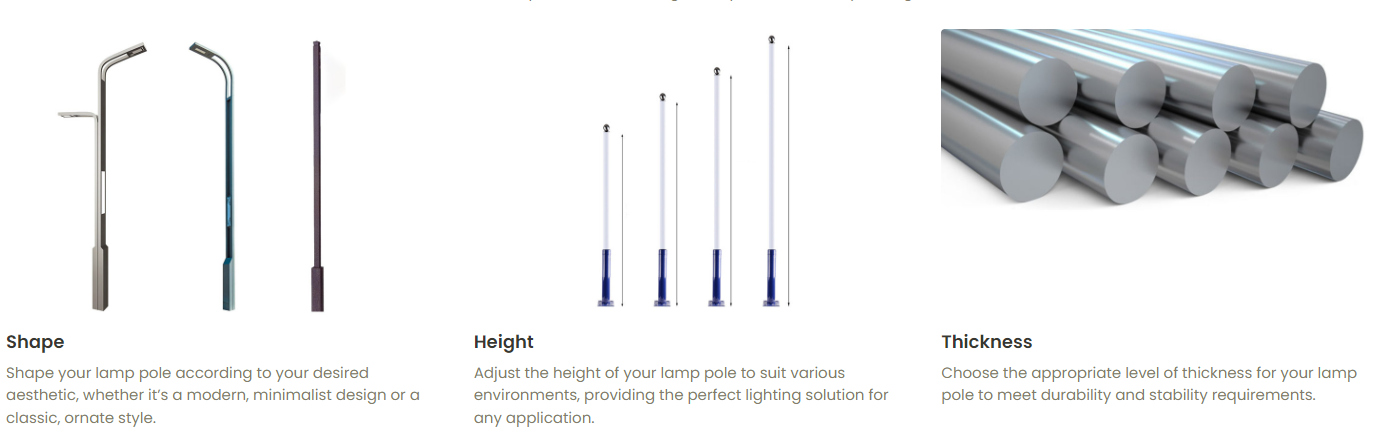

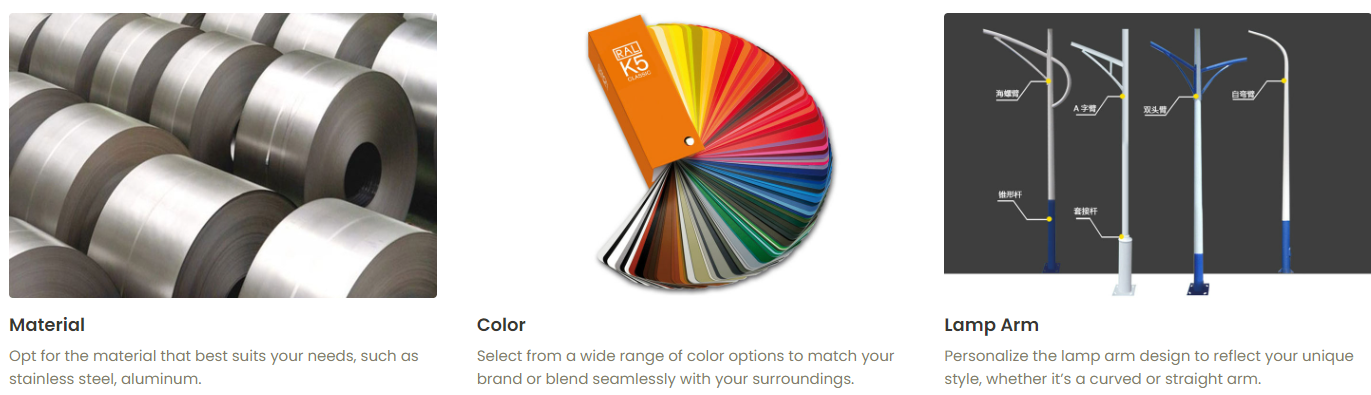

TAILOR-MADE FOR YOUR SATISFACTION LAMP POLE

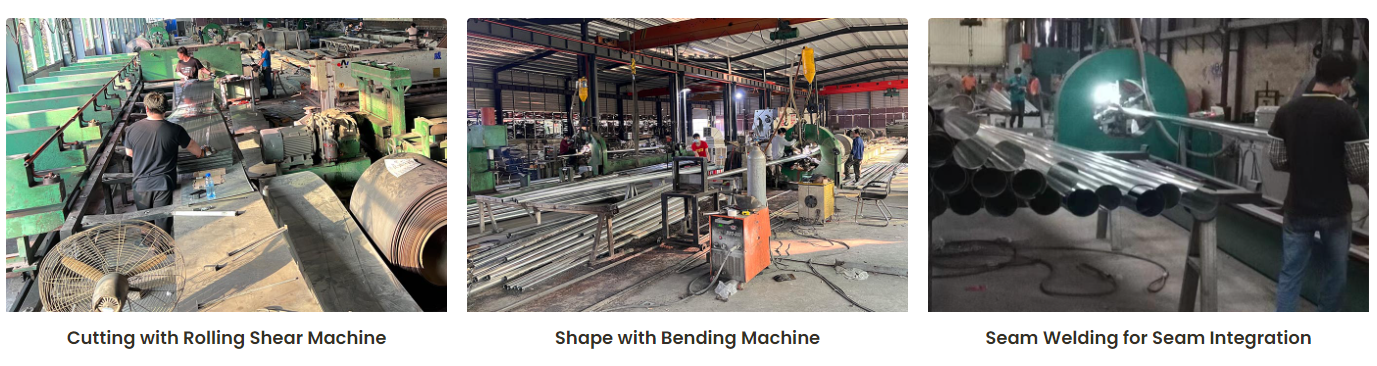

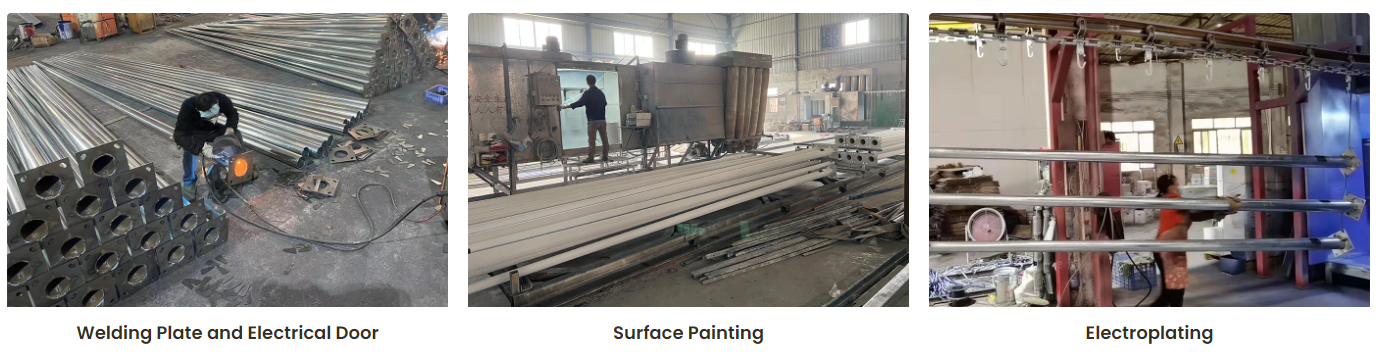

THE WORKSHOP BEHIND SUCCESS
Sunlamp’s state-of-the-art production ensures high-quality Street Lamp Pole, empowering your business with reliable and sustainable lighting solutions.
Speficaitions of street light pole
| Type | Material | Treatment | Height | Top Dia. | Bottom Dia. | Wall Thickness | Base Plate |
| Conical Pole | Q235 Steel | Hot dip galvanized | 5M | Ø60 | 130 | 2.5mm | 250*250mm |
| Conical Pole | Q235 Steel | Hot dip galvanized | 6M | Ø60 | 135 | 2.5mm | 250*250mm |
| Conical Pole | Q235 Steel | Hot dip galvanized | 7M | Ø60 | 145 | 2.75mm | 250*250mm |
| Conical Pole | Q235 Steel | Hot dip galvanized | 8M | Ø60 | 150 | 3.25mm | 250*250mm |
| Conical Pole | Q235 Steel | Hot dip galvanized | 10M | Ø60 | 168 | 3.75mm | 250*250mm |
| Remarks | All demension can be customized | ||||||
